For top entry drives, on request side drive possible
Balanced
Multiple springs rotating
Independent of direction of rotation
Available in metric and imperial sizes
Advantages
Available as semi-cartridge
No supply system required
No product contamination with barrier fluid
Low wear due to optimized seal face load
Suitable for vacuum operation
Friction-locked connection to the shaft
ATEX certification available on request
Inherently safe, even without temperature monitoring
Operating range
Shaft diameter(SI): d1 = 40 ... 80 mm
Shaft diameter (Imperial): d1 = 1.000“ … 2.000“
Pressure: p1 = vacuum ... 6 bar (87 PSI)
Temperature: -20 °C ... +200 (250*) °C
(-4 °F ... +392 (482*) °F)
Sliding velocity: vg = 0 ... 2 m/s (0 ... 6 ft/s)
Axial movement: ±1,5 mm
Radial movement: ±1,5 mm
* with cooling flange
Applications outside of this area of use are available on request.
! It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.
Materials
Seal face: Carbon graphite, FDA compliant
Seat: Silicon carbide
Secondary seals and metal parts according to application and customer's specifications.
Standards and approvals
FDA
ATEX
Recommended applications
Chemical industry
Pharmaceutical industry
Food and beverage industry
Non-toxic media
Agitators
Mixers
Reactors
Product variants

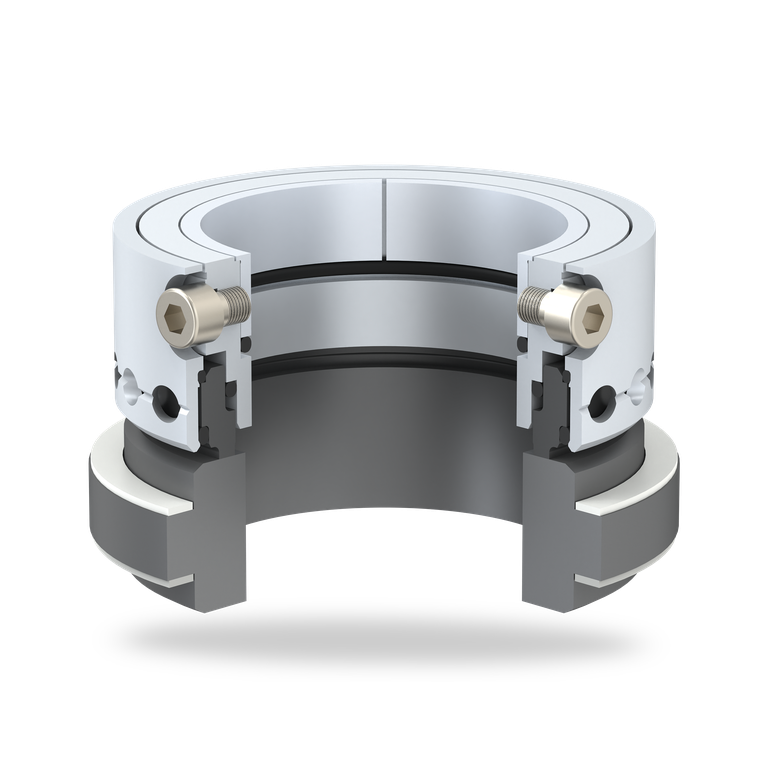

SeccoMix 1-E32, imperial
In the imperial version, the clamping ring, the driver and the seat have been adapted to allow easy integration into systems based on the imperial measurement system.
